Asia Chemical Engineering Co., Ltd. is one of the most reliable manufacturers and suppliers of salt based caustic soda plant in China. Please rest assured to wholesale cost-efficient salt based caustic soda plant from our factory. Good service and reasonable price are available.

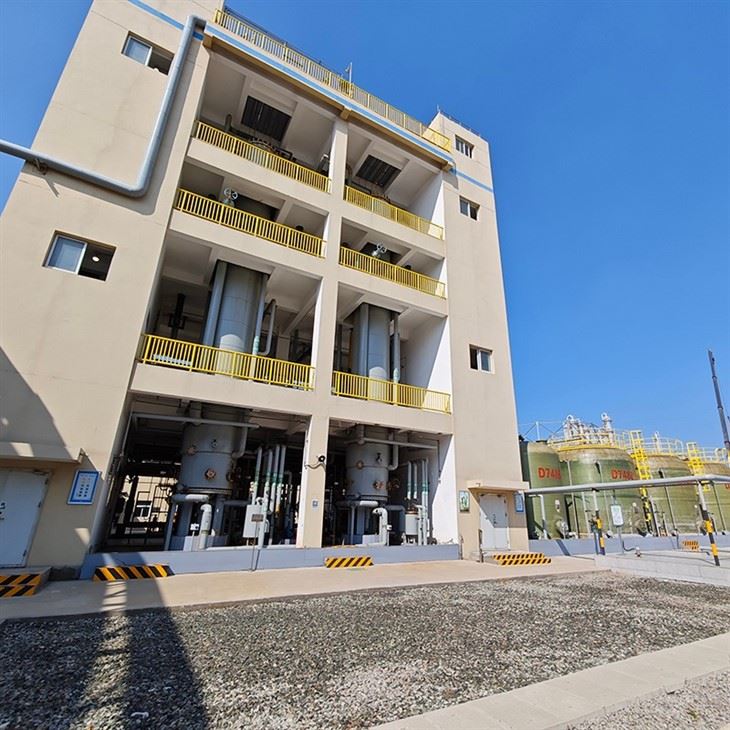

A Salt Based Caustic Soda Plant uses sodium chloride (NaCl) as the chlorine and sodium source for caustic soda production.
The simplified overall reaction is:
2NaCl + 2H₂O → 2NaOH + Cl₂ + H₂
The reaction takes place in an electrolyzer rather than through direct chemical conversion of solid salt.
A typical salt-based plant contains the following process stages:
Industrial Salt → Salt Dissolving → Brine Preparation → Brine Purification → Membrane Electrolysis → Caustic Soda → Concentration → Storage
At the same time, the electrolysis section produces chlorine and hydrogen, which require their own separation, treatment, utilization, or disposal systems.
This means the design of a salt-based caustic soda plant must consider NaOH, chlorine, and hydrogen production together.
Typical Product Specifications：
The final caustic soda product can be supplied at different concentrations depending on the customer's requirements.
Typical liquid-product configurations may include:
| Product | Typical Design Consideration |
|---|---|
| Dilute NaOH | Direct electrolysis product or process use |
| 32% NaOH | Concentration system designed to reach target specification |
| 48% NaOH | Additional evaporation required |
| 50% NaOH | Industrial concentrated liquid caustic soda |
The exact concentration should be specified during the process design stage because it affects the evaporation duty, steam consumption, product temperature and storage system.
Applications of Salt Based Caustic Soda
Caustic soda produced by salt-based chlor-alkali plants can be supplied to a wide range of industrial processes, including:
Alumina production
Pulp and paper
Chemical manufacturing
Textile processing
Water treatment
Detergent production
Petroleum refining
Petrochemical processing
Sodium hypochlorite production
Other inorganic chemical production
The plant can also be designed as part of an integrated chemical complex where NaOH, chlorine and hydrogen are consumed internally.
FAQ:
1. What raw materials are required for a Caustic Soda Plant?
The main raw material is sodium chloride (NaCl), which is dissolved in water to prepare brine. The plant also requires water and electrical power for the electrolysis process. Depending on the process configuration, chemicals may be required for brine purification, pH adjustment, dechlorination and other treatment steps.
2. What is the difference between a Salt Based Caustic Soda Plant and a Chlor-Alkali Plant?
A Caustic Soda Plant specifically emphasizes sodium chloride as the raw material for NaOH production. A Chlor-Alkali Plant refers more broadly to the industrial electrochemical process that simultaneously produces caustic soda, chlorine and hydrogen from brine. In practice, a salt-based caustic soda plant normally uses chlor-alkali technology.
3. Why is membrane technology commonly used in salt-based caustic soda production?
Membrane-cell technology separates the anode and cathode compartments with an ion-exchange membrane while allowing sodium ions to pass through. This prevents direct mixing of chlorine and caustic soda streams and allows caustic soda to be produced at the required concentration after downstream concentration. The actual membrane and electrolyzer selection should be based on the project capacity and technology supplier's specifications.
4. How is the required salt consumption calculated?
Salt consumption is determined from the NaOH production capacity, NaCl utilization, brine losses, purge requirements and process efficiency. A material balance is normally prepared during engineering to calculate the required salt feed rate rather than using a fixed salt-to-NaOH ratio for every plant.
