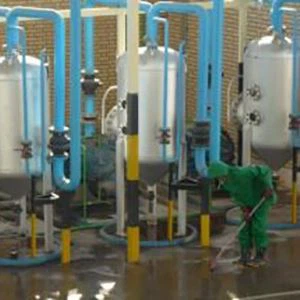

Asia Chemical Engineering Co., Ltd. is one of the most reliable manufacturers and suppliers of liquid sodium silicate digester plant in China. Please rest assured to wholesale cost-efficient liquid sodium silicate digester plant from our factory. Good service and reasonable price are available.
Raw Material Handling and Preparation
The key raw materials for liquid sodium silicate production are silica (SiO2) and sodium carbonate (Na2CO3). The plant typically stores these materials in silos or tanks. The materials are carefully measured and transported into the digester, which is a pressurized reactor where the chemical reaction takes place. In some processes, caustic soda (NaOH) may also be used as a substitute for sodium carbonate to alter the properties of the final product.
Chemical Reaction in the Digester
The core of the process takes place in the digester, a large, high-pressure reactor. Inside the digester, the raw materials are mixed with water and heated to very high temperatures, typically between 150°C to 200°C, under pressure ranging from 6 to 10 bar. During this stage, the silica reacts with sodium carbonate or sodium hydroxide in a controlled manner to produce sodium silicate. The reaction can be represented by the following chemical equation:
Na2CO3 + SiO2 → Na2SiO3 + CO2
The resulting product is a sodium silicate solution. The properties of this solution, including its concentration and ratio of sodium oxide to silica, can be adjusted depending on the requirements of the final product. These ratios, commonly referred to as the "silica modulus," determine the viscosity, solubility, and chemical reactivity of the liquid sodium silicate.
Heat and Pressure Control
The production process in the digester is highly dependent on maintaining precise control of temperature and pressure. Heating is typically achieved through steam, which is introduced into the system to maintain the necessary high temperatures for the reaction to occur. The digester must be robust and designed to withstand high pressure and temperature conditions to ensure the safety and efficiency of the operation. Efficient cooling mechanisms are also in place to lower the temperature of the product after the reaction is completed.
Filtration and Purification
Once the chemical reaction in the digester is complete, the liquid sodium silicate is typically filtered to remove any undissolved solids or impurities that may have remained from the raw materials. Filtration systems ensure that the final product is pure and free from particulate matter, which is critical for applications where high purity is required, such as in the detergent or adhesive industry.
Storage and Handling
After filtration, the liquid sodium silicate is pumped into storage tanks where it is kept at a controlled temperature to prevent solidification or changes in viscosity. These storage tanks are often insulated to maintain the solution in its optimal liquid form. Depending on customer requirements, the liquid sodium silicate may be further diluted or concentrated before being transferred into shipping containers or directly to customers in bulk.
FAQ:
1.What are the key raw materials used in the production of liquid sodium silicate?
The key raw materials for liquid sodium silicate production are silica (SiO2) and sodium carbonate (Na2CO3). In some cases, caustic soda (NaOH) can also be used as a substitute to alter the properties of the final product.
2.How is the chemical reaction carried out in a liquid sodium silicate digester?
The raw materials, silica and sodium carbonate, are mixed with water and heated in a high-pressure digester at temperatures between 150°C to 200°C. Under pressure ranging from 6 to 10 bar, the materials react to produce sodium silicate.
3.What role does temperature and pressure control play in the production of liquid sodium silicate?
Precise control of temperature and pressure is crucial in the production process. The reaction occurs under high temperatures and pressure, typically achieved using steam. This control ensures the efficiency of the reaction and the safety of the operation.
4.How is the purity of liquid sodium silicate ensured after the chemical reaction?
After the reaction in the digester, the liquid sodium silicate undergoes filtration to remove any undissolved solids or impurities. This step is essential to ensure high-purity sodium silicate for industries like detergents and adhesives.
5.What is the significance of the "silica modulus" in liquid sodium silicate production?
The "silica modulus" refers to the ratio of sodium oxide to silica in the liquid sodium silicate. This ratio determines the viscosity, solubility, and chemical reactivity of the final product, and it can be adjusted based on the specific requirements of customers.
6.How is liquid sodium silicate stored and handled after production?
Once filtered, the liquid sodium silicate is stored in insulated tanks at a controlled temperature to prevent solidification or changes in viscosity. It may also be diluted or concentrated according to customer requirements before being shipped.
7.Why is filtration important in the liquid sodium silicate production process?
Filtration is critical to remove impurities and undissolved solids from the final product. This step ensures the product's high purity, which is essential for industries requiring precision and quality, such as adhesives and detergents.
