The Membrane Cell Process is currently the most energy-efficient and environmentally friendly caustic soda production method in the world.
But understanding why this method is more efficient requires a deeper look into the different production technologies, their energy consumption levels, and what factors influence the overall efficiency of a caustic soda plant.

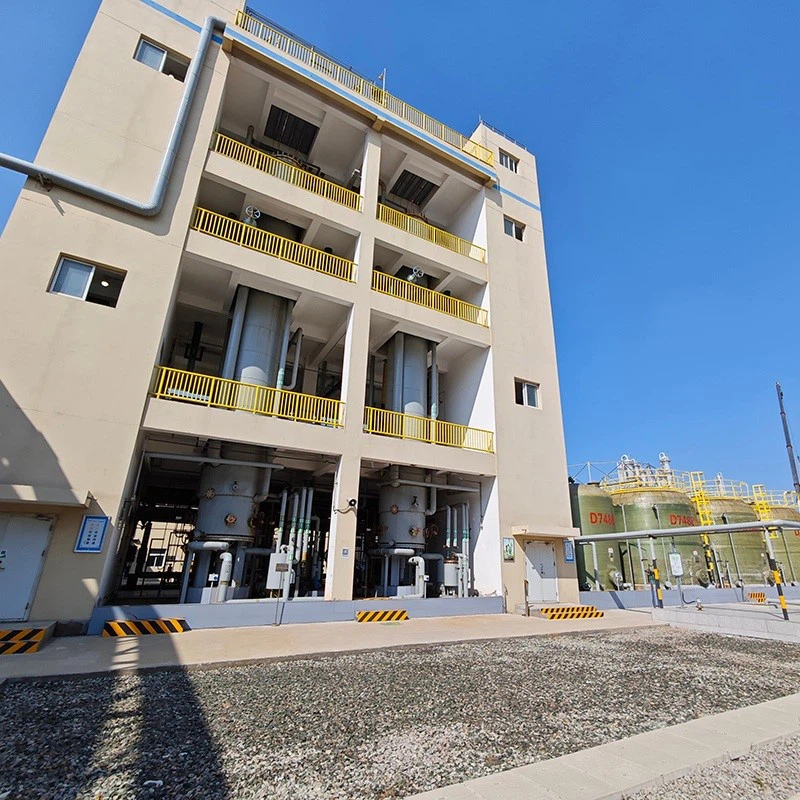

Overview of Caustic Soda Production Technologies
There are three main industrial methods used historically to produce caustic soda:
1. Mercury Cell Process (obsolete)
Oldest technology
Uses mercury as cathode
Extremely high energy consumption
Serious environmental and health issues
Banned or phased out in most countries
2. Diaphragm Cell Process
Medium energy consumption
Uses asbestos or polymer diaphragm
Produces lower-concentration caustic soda
Additional evaporation required
Still used in some regions due to lower equipment cost
3. Membrane Cell Process (modern & most efficient)
Lowest energy consumption
Produces high-purity caustic soda
Uses ion-exchange membrane
Environmentally friendly
Global industry standard
Globally, more than 80% of new caustic soda plants now use the membrane cell technology because of its high efficiency and lower operating cost.
Why the Membrane Cell Process Is the Most Energy-Efficient
Energy consumption is one of the most important indicators in caustic soda production because electricity makes up 50–65% of the operating cost of a chlor-alkali plant.
Here's the typical electricity consumption for each technology:
| Process | Electricity Consumption (kWh per ton NaOH) | Efficiency |
|---|---|---|
| Mercury Cell | 3400–4200 kWh/ton | Low |
| Diaphragm Cell | 2500–3100 kWh/ton | Medium |
| Membrane Cell | 2100–2600 kWh/ton | High (best) |
The membrane process saves:
30% more energy than mercury cell
10–25% more energy than diaphragm cell
So why does the membrane process consume so much less energy?
The reasons are simple:
Reason 1: Lower voltage requirement
Membrane cells require a lower operating voltage due to:
More efficient ion-exchange membrane
Lower resistance inside the cell
Reduced energy loss during electrolysis
Lower voltage = lower electricity consumption.
Reason 2: Produces high-concentration caustic soda directly
Membrane cell directly produces 32% caustic soda, while diaphragm cell usually produces 10–12% caustic soda, which must be concentrated through evaporation.
Evaporation consumes massive amounts of steam.
In comparison:
Membrane cell evaporation step is smaller
Less steam is needed
Total energy cost drops significantly
Reason 3: No mercury or asbestos
Environmental restrictions push industries toward membrane technology.
Unlike older processes:
No mercury pollution
No asbestos diaphragm
Lower maintenance cost
Lower waste treatment cost
Even though this is not "electricity," avoiding waste handling reduces total energy and operational burden.

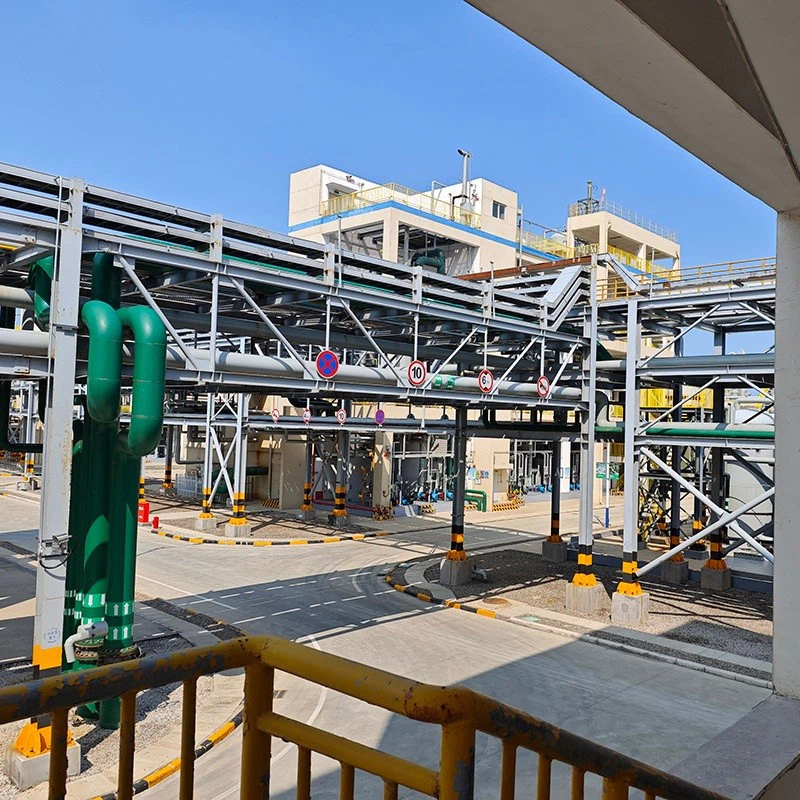

Reason 4: Better heat recovery and system integration
Modern membrane caustic soda plants usually include:
High-efficiency brine purification
Advanced heat exchangers
Low-pressure steam recycling
Integrated chlorination, hydrogen handling, and caustic soda concentration systems
These engineering optimizations improved during the past 20 years help reduce total thermal and electrical energy consumption.
Additional Factors That Influence Energy Efficiency
Even among membrane cell plants-recognized as the most energy-efficient technology-energy consumption can still vary significantly. Some plants achieve levels as low as 2100 kWh per ton, while others operate closer to 2600 kWh per ton.
First, brine purity plays a critical role. The electrolysis process requires extremely clean brine to maintain low cell resistance and avoid contamination of the ion-exchange membrane. When impurities such as calcium, magnesium, heavy metals, or organic matter enter the electrolyzer, the membrane becomes fouled. This increases electrical resistance, shortens membrane life, and leads to unstable operation-all of which raise energy consumption.
Second, the quality of the membrane itself directly affects energy usage. Premium membranes from companies such as Asahi Kasei, Chemours, and AGC are designed with lower electrical resistance, stronger chemical stability, and a longer operational lifespan. These high-performance membranes help reduce cell voltage and ensure more efficient ion transport, contributing to meaningful electricity savings over long-term operation.
Third, electrolyzer design determines how effectively electrical energy is converted into chemical reactions. Modern electrolyzers use advanced anode and cathode coatings, corrosion-resistant titanium components, and carefully engineered flow channels. These improvements reduce internal energy loss and maintain uniform current distribution, which lowers overall power consumption during electrolysis.
Fourth, energy-efficient evaporators are essential for minimizing steam usage. Although membrane cells produce 32% caustic soda directly, additional concentration to 48–50% is usually required. Plants equipped with multi-effect evaporators or MVR (Mechanical Vapor Recompression) systems can recycle heat more effectively, significantly reducing the steam required for evaporation and lowering thermal energy costs.
Fifth, operational skill and experience have a strong impact on day-to-day performance. Skilled operators can optimize parameters such as current density, brine concentration, temperature, and cell voltage to maintain stable and efficient operation. Properly trained personnel can easily save 50–150 kWh per ton just through better process control and timely adjustments.
Finally, digital automation has become a major driver of energy efficiency. Advanced DCS/PLC control systems help stabilize the electrolysis process by reducing voltage fluctuations, improving impurity monitoring, and preventing uneven current distribution. These systems keep the electrolyzers running within ideal conditions, improving both energy efficiency and membrane lifespan.

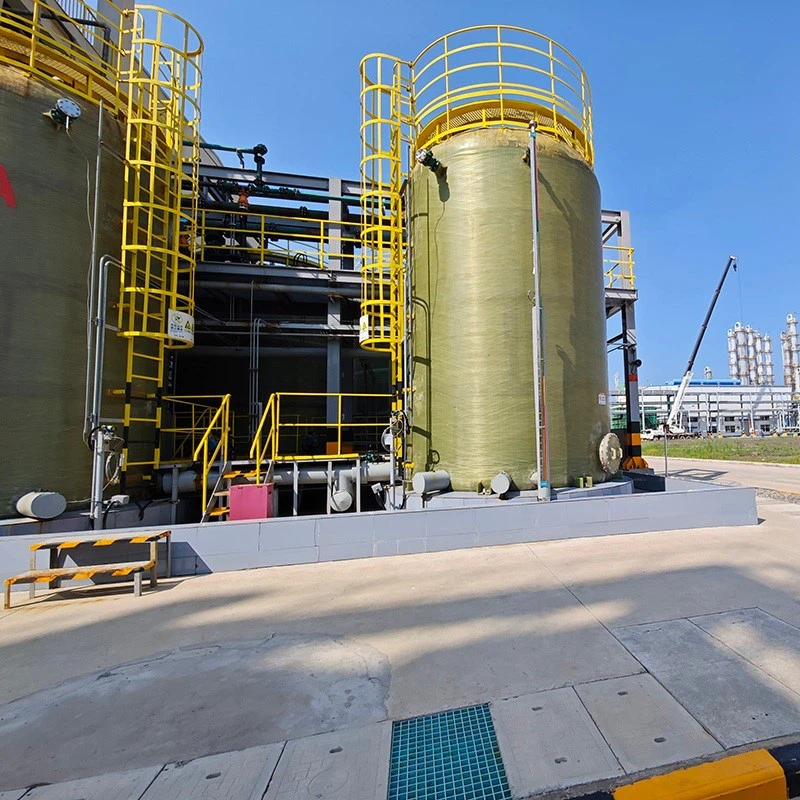

The Global Trend: Membrane Cell Dominance
Across the global chlor-alkali industry, membrane cell technology has become the mainstream choice. In regions such as Europe, the United States, Japan, and South Korea, diaphragm and mercury processes have been phased out or are nearing retirement. Stricter environmental regulations, higher electricity prices, and the demand for stable, high-purity products have accelerated this shift.
Diaphragm technology still operates in some countries for several practical reasons.
Diaphragm plants require lower capital investment. Equipment is simpler, and construction is faster, making them suitable for operators with limited funding.
Many older diaphragm plants continue running because upgrading to membrane cells would require major changes to brine purification, electrical systems, and evaporation units. When existing equipment still works, owners often choose to extend its life rather than invest in a full replacement.
Diaphragm plants are allowed in regions with less stringent environmental policies. Since they do not involve mercury, they face fewer regulatory pressures, especially in developing economies.
Access to cheap electricity also supports diaphragm production. Where power prices are low or subsidized, the higher energy consumption of diaphragm cells becomes more manageable.
Membrane technology remains the long-term direction. As electricity costs rise and environmental rules tighten, membrane plants provide a more efficient and sustainable solution. Lower power consumption leads to meaningful operating savings, and the higher product purity benefits downstream industries such as food, pharmaceuticals, and electronics.
Even More Energy-Efficient Solutions
✔ Zero-Gap Membrane Technology
Zero-gap membrane cell design minimizes the physical distance between the anode surface and the membrane, effectively reducing cell voltage and lowering overall energy consumption. By eliminating unnecessary separation layers, the technology also improves current efficiency and reduces heat loss inside the electrolyzer. As more plants upgrade to zero-gap systems, operating costs become more predictable and long-term power savings are significantly increased.
✔ Advanced Catalyst Coatings
Modern anode and cathode catalyst coatings enhance electrochemical reaction efficiency by lowering overpotential during chloride and hydrogen evolution reactions. These advanced coatings not only improve energy efficiency but also extend electrode lifespan, reducing the frequency of maintenance shutdowns.
✔ MVR Evaporation Systems
Mechanical Vapor Recompression (MVR) technology uses a compressor to recycle secondary steam, reducing fresh steam consumption by up to 90–95% compared with traditional multi-effect evaporation. This dramatically decreases thermal energy requirements and reduces carbon emissions from evaporation lines.
✔ Digital Twin & AI Optimization
Digital twin systems create a real-time virtual model of the plant, enabling predictive control and early detection of process deviations. When combined with AI algorithms, operators can optimize current density, brine purification, and cell voltage with automatic adjustments. This leads to more stable operation, reduced power consumption, and fewer unexpected shutdowns over the plant's life cycle.
✔ Green Chlor-Alkali with Renewable Energy
Integrating renewable energy-especially solar and wind-with membrane cell electrolysis significantly reduces carbon emissions while maintaining stable product quality. In regions with abundant sunlight or wind resources, renewable-powered chlor-alkali plants can achieve some of the lowest operating costs globally. As grid energy prices fluctuate, more operators are considering hybrid renewable systems as a long-term solution for economic and environmental performance.
These innovations will push membrane technology even further ahead
With continuous advancements in electrochemical design, energy recovery, and digital optimization, membrane cell technology is expected to remain the dominant choice for new chlor-alkali investments worldwide. Each innovation reduces operating cost per ton and lowers environmental impact, aligning the industry with global sustainability and energy-efficiency goals.
